The thermal laser stimulation bench is an optical microscope which enables to focus with precision, a PDM+ laser source (Pulse-on-Demand Module) at 1420 nm. Used through the back side of electronic components, the laser beam warms the sample locally and allows to extract and read out data in a memory according to the current consumption of the transistors.
Product reference: TLS laser bench
A side-channel technique

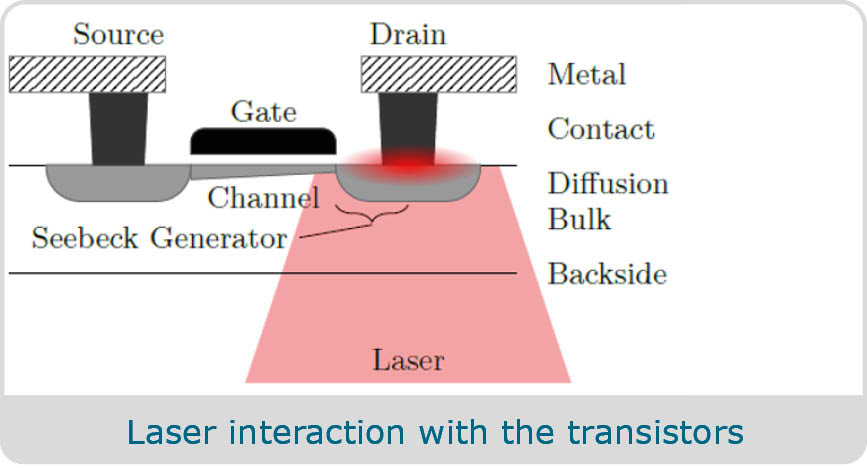

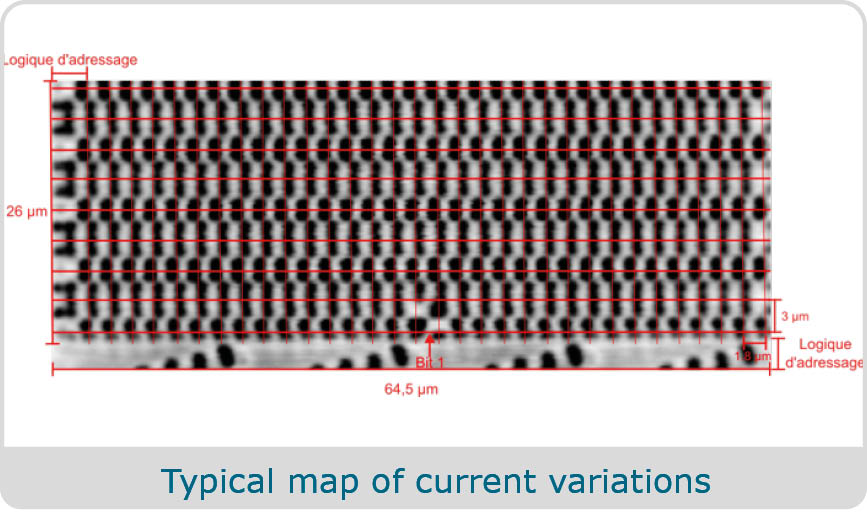

The aim of the thermal laser stimulation bench is to use the laser to warm strategic areas on the back side of the integrated circuits (SRAM, BBRAM, etc.). Depending on the power consumption of the transistors under the effect of the laser, it is possible to extract data from the memories. The aim of this technique is to help to secure integrated circuits.
A dedicated bench or a functionality added to a fault injection bench
In both cases, specific high transmission optics allow to obtain better performance on your samples:
- a variable spot size from 1 µm to 13 µm
- a Gaussian spot
- transmissions >80 %
A PDM laser source at 1420 nm

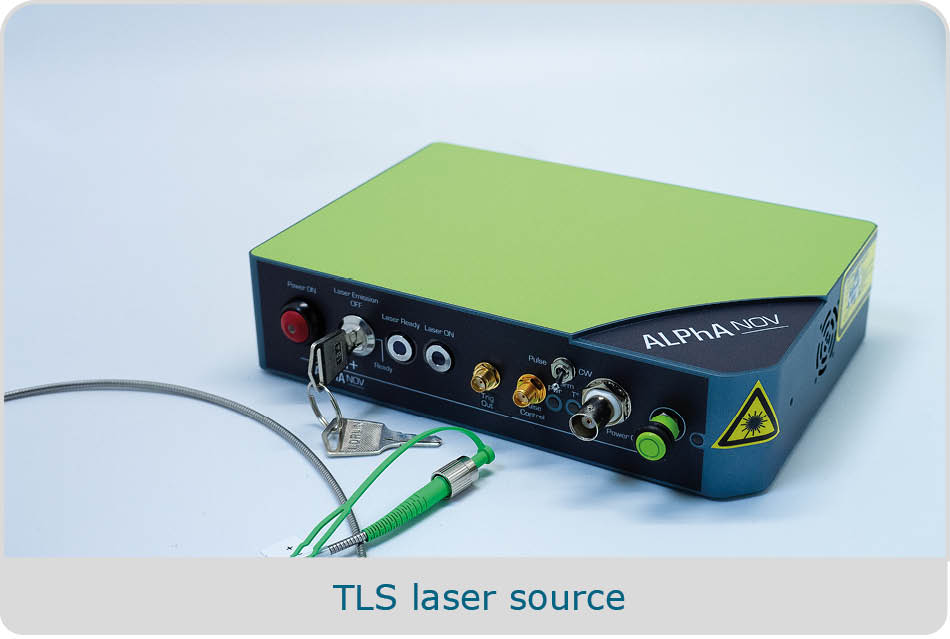

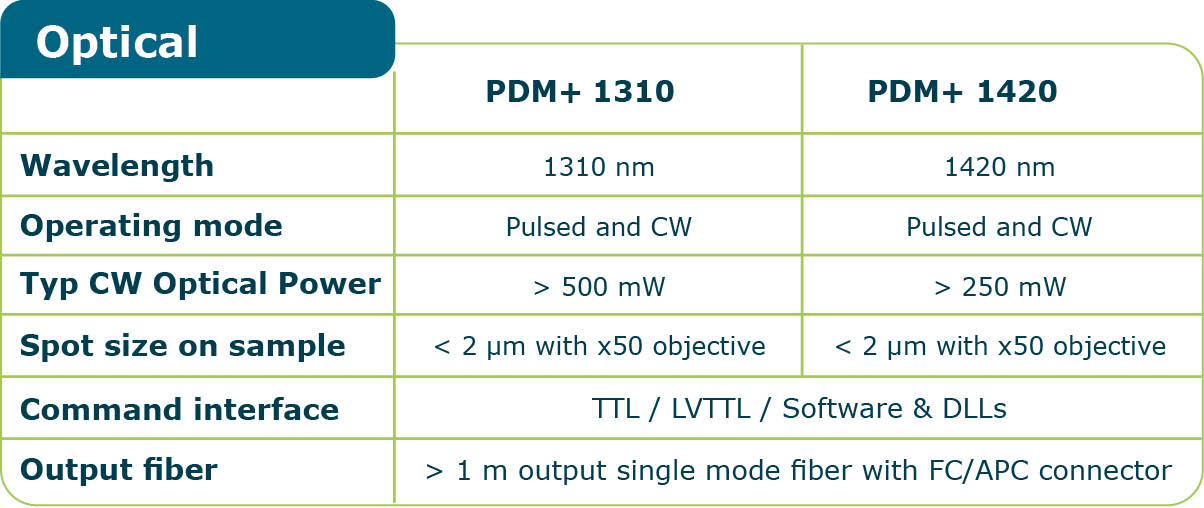

The thermal laser stimulation bench integrates a PDM at 1420 nm. This single-mode source can be focused down to 1 µm and can generate pulses on demand from 1 ns to continuous wave, and from the single shot to a 250 MHz repetition rate.
The available laser peak power of 1.2 W allows to generate the desired effects through the silicon, even with the greatest thicknesses. This laser can be PC-controlled with the dedicated software and can be controlled by Python commands or via the esDynamic software developed by the company eShard.

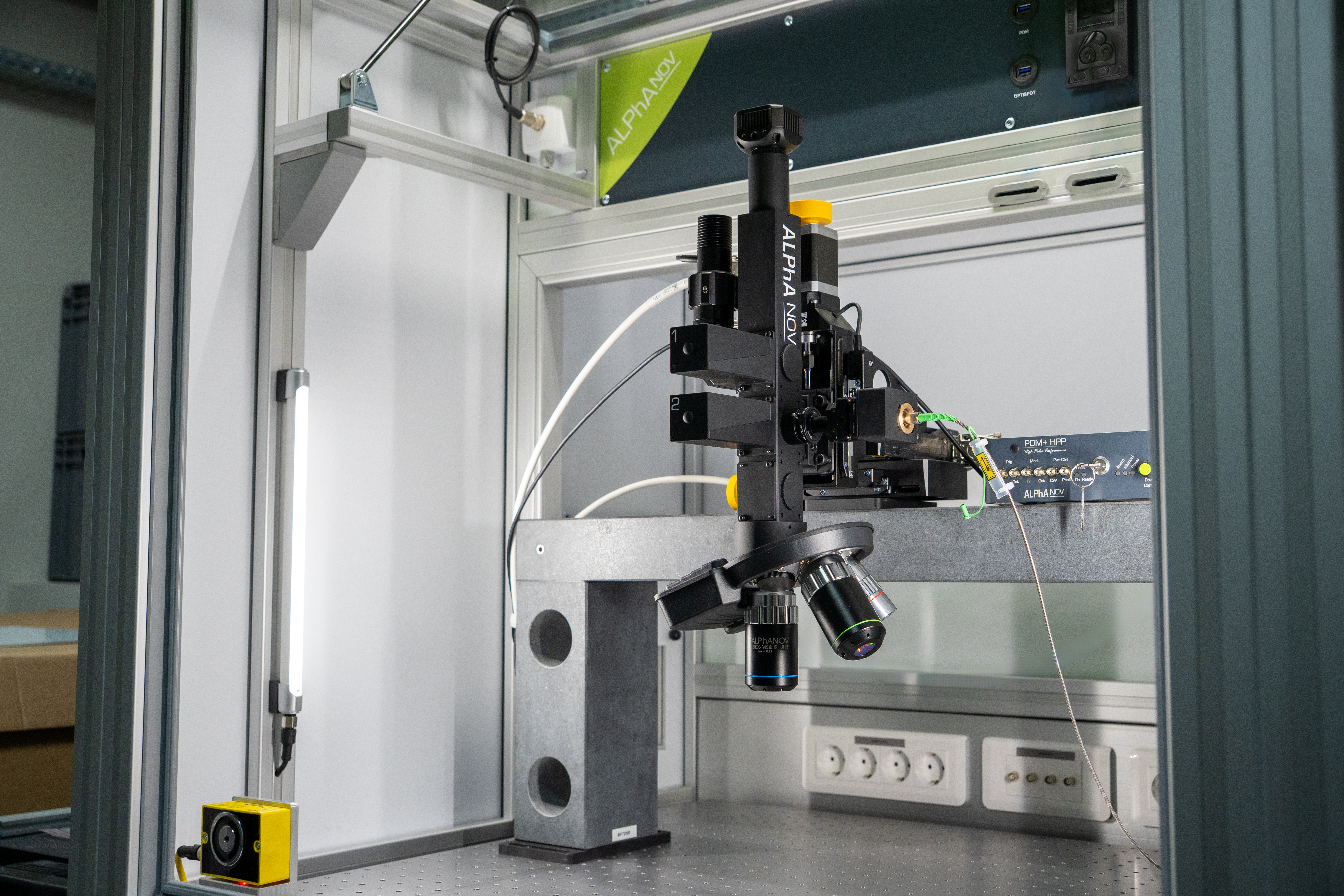

Coaxial infrared vision
Like the S-LMS or D-LMS fault injection benches, this thermal laser stimulation bench integrates infrared lighting and vision. The high-resolution IR camera enables to obtain a good quality view of the paths of the chip through the back side even through several hundred micrometers of silicon.
The laser spots can also be watched at the same time and easily placed or moved on the sample.
- PDM+ laser source at 1420 nm
- Spot size 1 to 13 µm
- Peak power up to 1.2 W
- Microscope optimized at 1420 nm (transmission >80 %)
- Microscope stabilized and mounted on XYZ of resolution 50 nm
- High-resolution infrared vision
